Mechanical angle

360º(Endless)

Protection degree

IP67

Operating torque

≤50mN·m

Life expectancy

100,000,000

Mass

Approx.330g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Shaft load

Axial 40N，Radial 80N

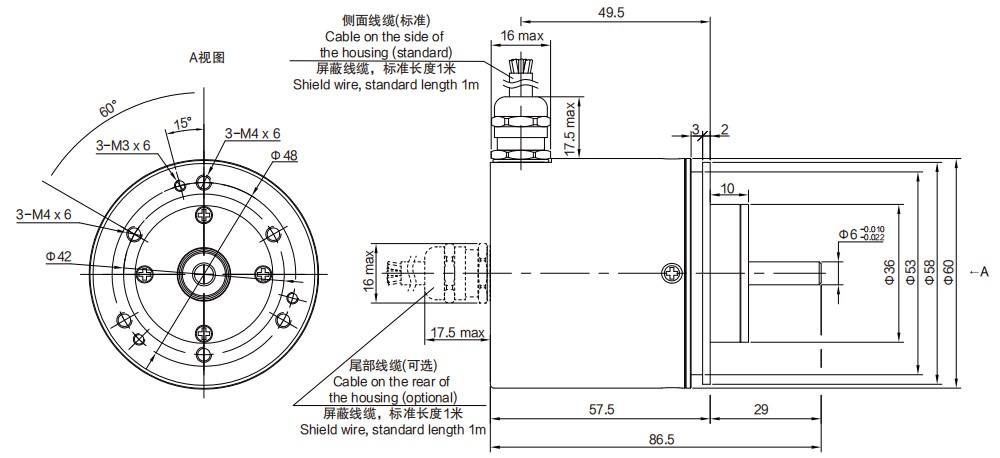

Shaft diameter

φ6/ φ8/ φ10/ φ12

Operating temperature range

-30℃～+85℃

Storage temperature range

-30℃～+85℃

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

100V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010

Standard model

R58 2410 W360（For more input voltage/output signal such as 0505、2405、2442, please check our catalog.）

Input voltage

15～30V

Output signal

0～10V

Current consumption (no-load)

<25mA

Output deviation of both ends

<50mV

Load resistance

>100KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

0505

5V±10% / 0～100%Vcc

2410

15～30V / 0～10V

2405

9～30V / 0～5V

2442

15～30V / 4～20mA

Special analog signals

1010：10V applied, 0~10V output, 0305：3.3V applied, 0~5V output, PWM

Other output signals

Incremental, SSI, SPI, RS485, RS422, CAN, USB

Special shaft

Special length of shaft, special diameter, special machining on shaft (like shaft slotted、fatted etc.) or blind hole
