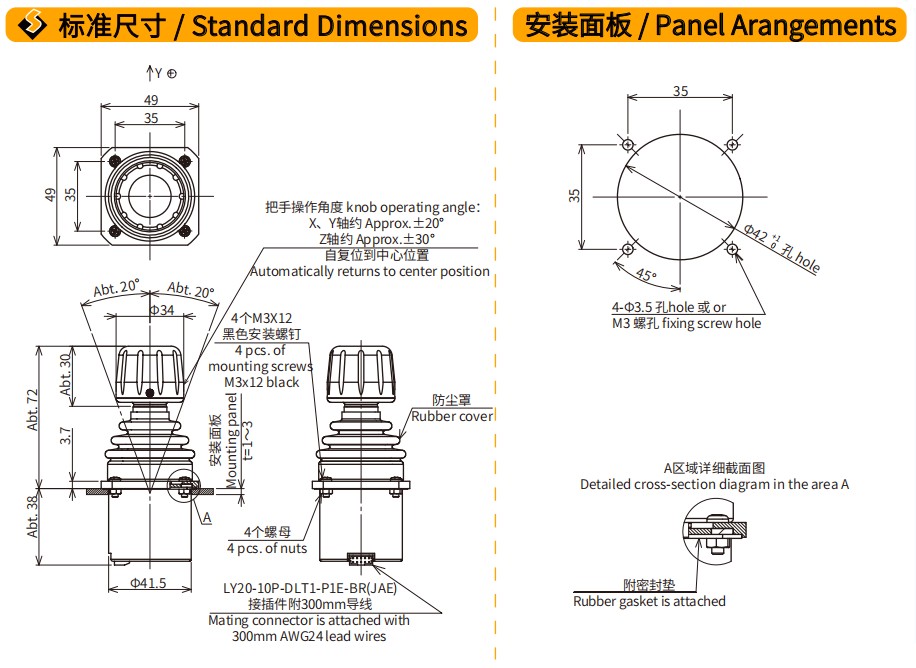

3-dimensional coordinate type joystick
Hall effect joystick
Low-cost
Controlling range of operating lever
3-dimensional coordinate type, X and Y directions: Approx. ±20° from center position, Z direction : Approx.±30° from center position
Operating force
Standard spring return device (Automatically return to center), X and Y directions: Approx.1～4N(100～400gf)
Operating temperature range
Z direction : Approx.40～80mN･m(400～800gf･cm)40~60mN·m(400~600gf·cm）
Vibration
-20℃~+60℃
Shock
10~55HZ，98m/s2
Mechanical life expectancy
294m/s2
Mass
Approx. 5,000,000 operations for X and Y axes, Approx. 3,000,000 operations for Z axis.
Type
Hall effect IC type resistive element incorporated
Applied voltage
5V±10%
Effective output
Approx.0.5V～4.5V
Electrical rotating angle
X and Y-axis: Approx.±20°, Z-axis: Approx.±30°
Independent linearity tolerance
±3%
Load resistance
＞10KΩ
Dielectric strength
1 minute at 500V.A.C.
Insulation resistance
＞1000MΩ（500V.D.C）
EMS durability
100V/m (80MHz〜6GHz Based on ISO11452-1〜-3)
ESD durability
±8kV contact ±15kV aerial discharge (Based on IEC61000-4-2)
