Standard Resistance Values

500,1K,2K,5K,10K

Total Resistance Tolerance

±20%(M)

Independent Linearity Tolerance

±2.0%（Standard）、±1.0%（Precision）

Resolution

Endless

Output Smoothness

<against input voltage 0.1%

Contact Resistance Variation

<2%C.R.V.

Power Rating

0.2W

Electrical Stroke

12.7±0.5mm

Mechanical Stroke (MS)

12.7mm

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<0.5N(50gf)

Stopper Strength

Approx. 20N(2kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx. 10g

Standard Resistance Values

500,1K,2K,5K,10K

Total Resistance Tolerance

±20%(M)

Independent Linearity Tolerance

±1.5%（Standard）、±0.7%（Precision）

Resolution

Endless

Output Smoothness

<against input voltage 0.1%

Contact Resistance Variation

<2%C.R.V.

Power Rating

0.4W

Electrical Stroke

25.4±0.5mm

Mechanical Stroke

25.4mm

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<0.5N(50gf)

Stopper Strength

Approx. 20N(2kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx. 15g

Standard Resistance Values

1K,2K,5K,10K,20K

Total Resistance Tolerance

±20%(M)

Independent Linearity Tolerance

±1.0%（Standard）、±0.5%（Precision）

Resolution

Endless

Output Smoothness

<against input voltage 0.1%

Contact Resistance Variation

<2%C.R.V.

Power Rating

0.7W

Electrical Stroke

50.8±0.5mm

Mechanical Stroke

50.8mm

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<0.5N(50gf)

Stopper Strength

Approx. 20N(2kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx. 25g

Standard Resistance Values

1K,2K,5K,10K,20K

Total Resistance Tolerance

±20%(M)

Independent Linearity Tolerance

±0.7%（Standard）、±0.3%（Precision）

Resolution

Endless

Output Smoothness

<against input voltage 0.1%

Contact Resistance Variation

<2%C.R.V.

Power Rating

1.2W

Electrical Stroke

101.6±0.5mm

Mechanical Stroke

101.6mm

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<1.0N(100gf)

Stopper Strength

Approx. 20N(2kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx. 35g

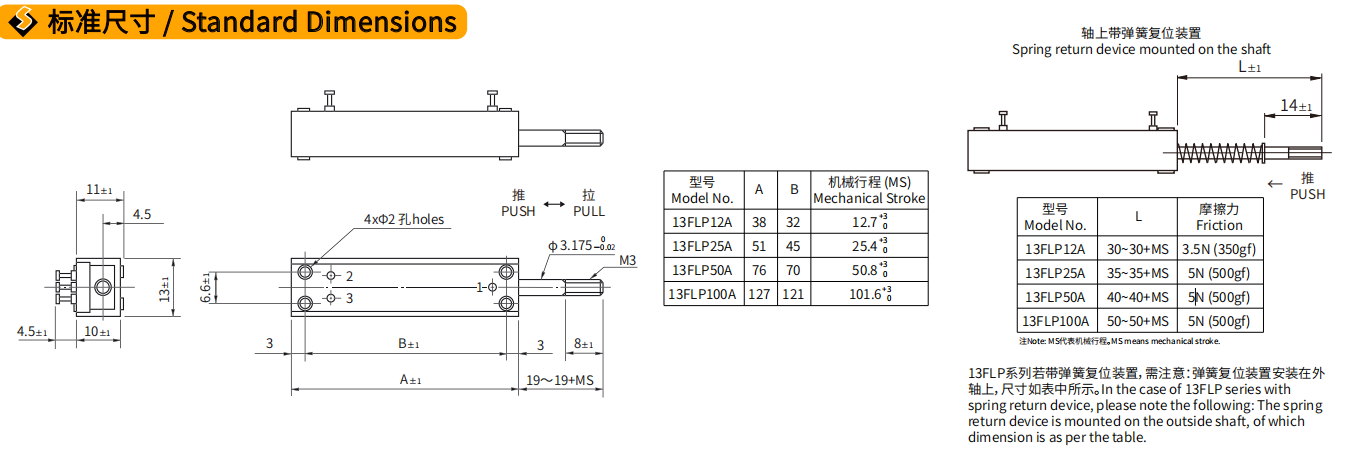

Special shaft type

Special machining on the shaft

Spring return device

Spring return device mounted on the shaft (Friction is referred as within table.)

Spring type

Wirewound resistive element type (13LP series)
