Magnetic encoders
Any PPR up to 4096 available
High protection degree
With one couple of precision ball bearings

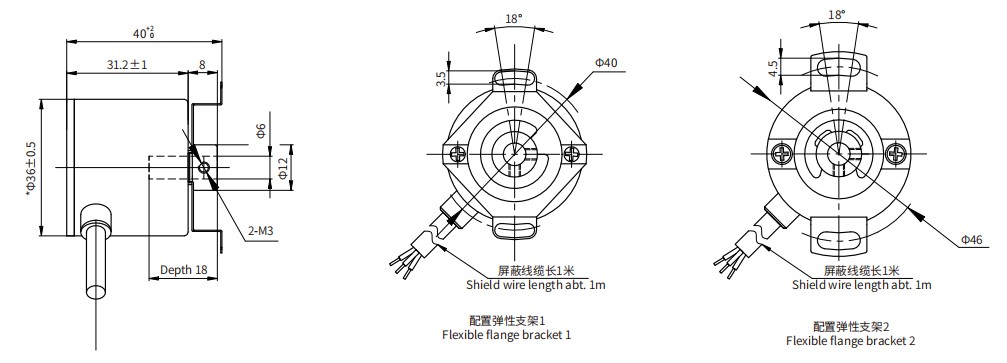

Flexible flange mount
Protection degree
IP67
Operating torque
<1mN·m
Max.speed
6000rpm
Life expectancy
100,000,000
Mass
Approx.115g
Housing material
Aluminium alloy
Shaft material
Brass
Operating temperature range
-40℃～+85℃
Storage temperature range
-40℃～+85℃
Standard model
EI36B-F1-W4096-P
Applied voltage
5V-30V
Output form
Push-pull output
Number of output pulse
4096 ppr
Output propagation delay
<2μs
Current consumption
<20mA
Insulation resistance
> 1000MΩ (500V.D.C)
Dielectric strength
1 min (500V.A.C)
Special shaft
Special length of shaft、special diameter or special machining on shaft (shaft slotted, fatted, etc.)
Special output
Differential signal and open-collector
Other output characteristics
Anolog signals, Bus signals, etc.
