Mechanical angle

360º(Endless)

Mass

Approx.12g

Protection degree

IP40

Operating torque

<5mN·m

Life expectancy

50,000,000

Housing material

Plastic

Shaft material

Stainless steel

Operating temperature range

-30℃～+85℃

Storage temperature range

-30℃～+85℃

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

10V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010

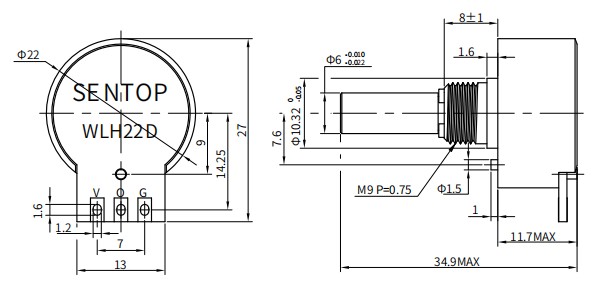

Standard model

WLH22D 0505 W360

Input voltage

5V±10%

Output signal

0～100%Vcc

Current consumption (no-load)

<16mA

Output deviation at both ends

<1%·VCC

Load resistance

>100KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.5%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special analog signals

Dual analog signal and PWM

Special shaft

Special length of shaft, special diameter or special machining on shaft (like shaft slotted、fatted etc.)

Special torque

Products for high torque <10mN·m
